Clueboard QMK Configurator JSONs

You can use the JSON files provided here as a starting point for your own customized layout. These work with the QMK Configurator and are the same as the default layout flashed to your Clueboard.

Step by Step Instructions

Use QMK Configurator To Create Your Firmware


Screen Shot 2019-03-12 at 12.13.55.png

  • Make any changes you would like

  • Press the Compile button to build your Firmware


Screen Shot 2019-03-12 at 12.13.55.png

  • Watch the potato spin while your keyboard firmware bakes

  • When it completes press the Download Firmware button


Screen Shot 2019-03-12 at 12.23.32.png


Flash your firmware using QMK Toolbox

  • Open QMK Toolbox

  • Click Open to select the Firmware you downloaded. Some Clueboards use .hex files for firmware while others use .bin files.

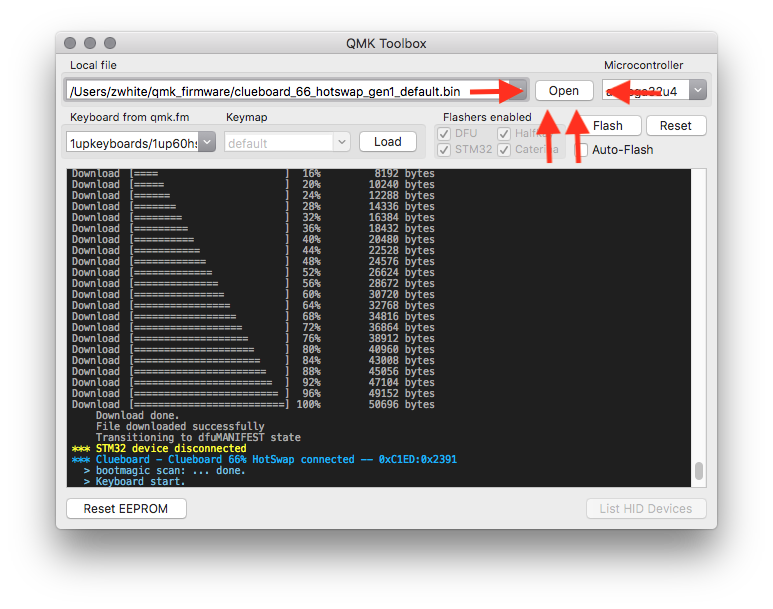

Screen Shot 2019-03-12 at 12.27.59.png

  • Enter DFU mode on your Clueboard. By default you can use Fn+S+R or press the FLASH or RESET buttons on the bottom of the PCB.

  • Windows Only: Use Zadig to install the WinUS(libusb-1.0) driver. You only have to do this once, just before the first time you flash.

  • Click Flash to reprogram your Clueboard. Do not Quit QMK Toolbox, unplug your Clueboard, Turn Off Your Computer, or otherwise interrupt the reprogramming process.


Screen Shot 2019-03-12 at 12.27.59.png

  • Congratulations! You have successfully reprogrammed your Clueboard!



Clueboard JSON Files



Clueboard 66% Hotswap Gen 1

This PCB is USB-C and is Black. It ships with the Clueboard 66% LP.

LAYOUT_66_ansi



Clueboard 66% Soldered Rev 4

This PCB is USB-C and is Black. It will ship with the Clueboard 66% LP, Volcano 660, and is available for purchase.

LAYOUT_66_ansi

Direct link to Configurator Page:
https://config.qmk.fm/#/clueboard/66/rev4/LAYOUT_66_ansi
Direct link to Default Layout JSON:

clueboard_66_rev4_default_66_layout_66_ansi.json

LAYOUT_66_iso

Direct link to Configurator Page:
https://config.qmk.fm/#/clueboard/66/rev4/LAYOUT_66_iso
Direct link to Default Layout JSON:
clueboard_66_rev4_default_66_layout_66_iso.json

LAYOUT

Direct link to Configurator Page:
https://config.qmk.fm/#/clueboard/66/rev4/LAYOUT
Direct link to Default Layout JSON:
clueboard_66_hotswap_gen1_default_66_layout.json



Clueboard 66% Soldered Rev 3

This PCB is Mini-USB and is White. It ships with the Clueboard 66% V2, Clueboard 66% V3/V4, and is available for purchase.

LAYOUT_66_ansi

Direct link to Configurator Page:
https://config.qmk.fm/#/clueboard/66/rev3/LAYOUT_66_ansi
Direct link to Default Layout JSON:
clueboard_66_rev3_default_66_layout_66_ansi.json

LAYOUT_66_iso

Direct link to Configurator Page:
https://config.qmk.fm/#/clueboard/66/rev3/LAYOUT_66_iso
Direct link to Default Layout JSON:
clueboard_66_rev3_default_66_layout_66_iso.json

LAYOUT



Clueboard 2x1800

This PCB was available for purchase on April 1, 2018.

LAYOUT_all

Direct link to Configurator Page:
https://config.qmk.fm/#/clueboard/2x1800/LAYOUT_all
Direct link to Default Layout JSON:
https://clueboard.co/s/clueboard_2x1800_default_1800_layout_all.json

LAYOUT_4u_space

Direct link to Configurator Page:
https://config.qmk.fm/#/clueboard/2x1800/LAYOUT_4u_space
Direct link to Default Layout JSON:
clueboard_2x1800_default_1800_layout_4u_space.json
